產品介紹產品細節：
產品參數| 規格型號 | 可剪板厚 mm |
可剪板寬 mm |
剪切角 (°) |
行程次數 min-1 |
后擋料范圍 mm |
主電機功率 kw |
| QC12Y-4X2500 | 4 | 2500 | 1°30' | 10~16 | 20~600 | 4.0 |
| QC12Y-4x3200 | 4 | 3200 | 1°30' | 17~14 | 20~600 | 5.5 |
| QC12Y-4X4000 | 4 | 4000 | 1°30' | 8~10 | 20~600 | 5.5 |
| QC12Y-4X5000 | 4 | 5000 | 1°30' | 7~9 | 20~600 | 5.5 |
| QC12Y-4X6000 | 4 | 6000 | 1°30' | 5~7 | 20~600 | 7.5 |
| QC12Y-6X2500 | 6 | 2500 | 1°30' | 10~12 | 20~600 | 7.5 |
| QC12Y-6x3200 | 6 | 3200 | 1°30' | 10~12 | 20~600 | 7.5 |
| QC12Y-6X4000 | 6 | 4000 | 1°30' | 8~10 | 20~600 | 7.5 |
| QC12Y-6X5000 | 6 | 5000 | 1°30' | 7~9 | 20~600 | 7.5 |
| QC12Y-6x6000 | 6 | 6000 | 1°30' | 6~7 | 20~600 | 7.5 |
| QC12Y-8X2500 | 8 | 2500 | 1°30' | 10~12 | 20~600 | 7.5 |
| QC12Y-8x3200 | 8 | 3200 | 1°30' | 8~10 | 20~600 | 7.5 |
| QC12Y-8X4000 | 8 | 4000 | 1°30' | 6~8 | 20~600 | 11 |
| QC12Y-8X5000 | 8 | 5000 | 1°30' | 5~7 | 20~800 | 15 |
| QC12Y-8x6000 | 8 | 6000 | 1°30' | 4~ 6 | 20~800 | 15 |
| QC12Y-8x8000 | 8 | 8000 | 1°30' | 3~5 | 20~800 | 15 |
| QC12Y-10x2000 | 10 | 2000 | 1°45' | 6~7 | 20~600 | 11 |
| QC12Y-10x2500 | 10 | 2500 | 1°45' | 6~8 | 20~600 | 1 1 |
| QC12Y-10x3200 | 10 | 3200 | 1°45' | 6~8 | 20~600 | 11 |
| QC12Y-10x4000 | 10 | 4000 | 1°45' | 6~8 | 20~600 | 15 |
| QC12Y-12x2000 | 12 | 2000 | 2° | 6~8 | 20~800 | 15 |
| QC12Y-12x2500 | 12 | 2500 | 2° | 6~8 | 20~800 | 15 |
| QC12Y-12x3200 | 12 | 3200 | 2° | 6~8 | 20~800 | 15 |
| QC12Y-12x4000 | 12 | 4000 | 2° | 6~8 | 20~800 | 18.5 |
| QC12Y-12x5000 | 12 | 5000 | 2° | 5~7 | 20~800 | 22 |
| QC12Y-12x6000 | 12 | 6000 | 2° | 4~6 | 20~800 | 22 |
| QC12Y-12x8000 | 12 | 8000 | 2° | 3~5 | 20~800 | 22 |
| QC12Y-16x2500 | 16 | 2500 | 2° | 6~8 | 20~800 | 18.5 |
| QC12Y-16x3200 | 16 | 3200 | 2° | 5~7 | 20~800 | 18.5 |
| QC12Y-16x4000 | 16 | 4000 | 2° | 3~5 | 20~800 | 18.5 |
| QC12Y-20x2000 | 20 | 2000 | 2°30' | 6~8 | 20~800 | 22 |
| QC12Y-20x2500 | 20 | 2500 | 2°30' | 4~6 | 20~800 | 22 |
| QC12Y-20x3200 | 20 | 3200 | 2°30' | 4~6 | 20~800 | 30 |
| QC12Y-20x4000 | 20 | 4000 | 2°30' | 4~6 | 20~800 | 30 |
| QC12Y-25x2000 | 25 | 2000 | 3° | 4~6 | 20~800 | 30 |
| QC12Y-25x2500 | 25 | 2500 | 3° | 4~6 | 20~800 | 30 |
| OC12Y-25x3200 | 25 | 3200 | 3° | 4~6 | 20~800 | 37 |
| QC12Y-30x2500 | 30 | 2500 | 3°30' | 4~6 | 20~800 | 37 |
| QC12Y-30x3200 | 30 | 3200 | 3°30' | 3~5 | 20~800 | 45 |
| QC12Y-40x2500 | 40 | 2500 | 4° | 3~5 | 30~800 | 55 |
| QC12Y-40x3200 | 40 | 3200 | 4° | 3~5 | 20~800 | 55 |
| QC12Y-50x3000 | 50 | 3000 | 4°30' | 3~5 | 90x3 | |
| QC12Y-50x6000 | 50 | 6000 | 4°30' | 3~5 | 90x5 | |
| QC12Y-60x3500 | 60 | 3500 | 5° | 3~5 | 90x4 |
更多產品
該剪板機采用鋼板焊接結構，液壓傳動，蓄能器回程，操作方便，性能可靠，外形美觀。刃口間隙調整有指示牌指示，調整輕便迅速。設有燈光對線裝置，并能無級調節上刀架的行程量。

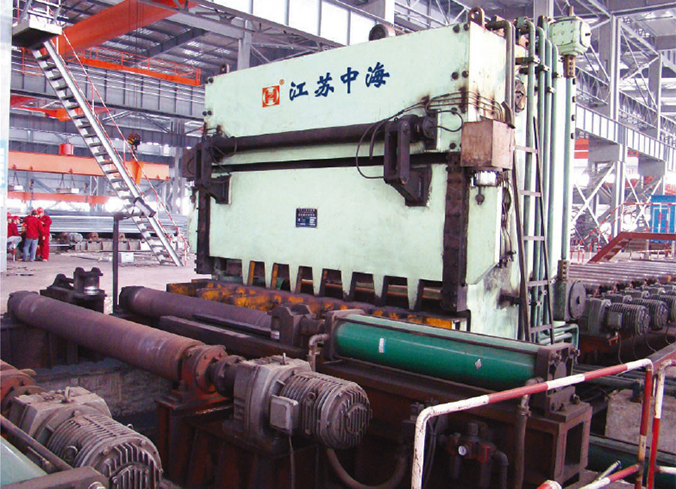

QC12Y系列大型液壓擺式剪板機主要部件采用鋼板焊接結構、液壓傳動，機器工作平穩、可靠、堅固、剛性好。其液壓動力與主體分開，具有很強的耐高溫性。
全鋼焊接結構，綜合處理(振動時效、熱處理）消除內應力，有很好的剛性與穩定性。采用精密滾動導軌，消除導軌間隙，前切質量高。矩形刀片，四個刃口均可使用，使用壽命長。
